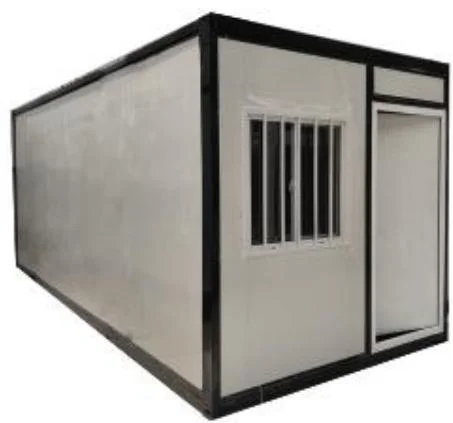

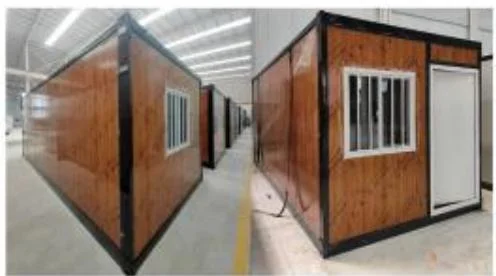

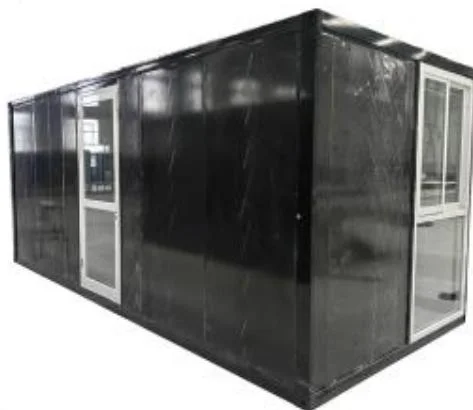

Folding house is a new type of building form that uses folding technology to transform a standard container into a reusable housing unit.
Can be used for medical disaster relief, military barracks, post earthquake resettlement, highways, railways, buildings, wind power, optoelectronics, oil exploration, emergency response to dangerous buildings, etc. Quick and convenient disassembly and assembly, no need for professional construction teams, no construction waste, shortening disassembly and assembly time, no damage to secondary use, saving transportation and disassembly costs, beautiful, durable, low-carbon, green, and environmentally friendly.
| basic feature | External dimensions (mm) | 5900 length*2480 width *2450 height |
| Internal dimensions (mm) | 5740 length*2320 width*2310 height | |
| Folded state (mm) | 5900*2480*420 | |
| Total Weight (kg) | 1200 | |
| Frame structure | Top main beam | Q235B P-type square tube 60 * 80 * 1.3mm |
| Bottom main beam | Q235B rectangular square tube 80 * 140 * 1.3mm | |
| Front and rear main beams | Q235B irregular square tube 60 * 80 * 1.3mm | |
| Side wall frame | Q235B P-type square tube 60 * 80 * 1.3mm | |
| Bottom load-bearing capacity | Q235B rectangular square tube 40 * 40 * 1.2mm | |
| Top load-bearing capacity | Q235B rectangular square tube 40 * 40 * 1.2mm | |
| Hanging head | Q235B 50*130*6mm | |
| Folding hinges | Galvanized hinges 13mm | |
| Box top | Overall framework protection coating | Electrostatic spraying/high gloss white |
| External roof panel | Corrugated board 0.4mm | |
| Internal ceiling | Color steel veneer V193* 0.25mm | |
| wallboard | Insulated glass wool | Glass wool roll 50mm (bulk density 16kg) |
| Side wall | 65mm composite board 0.23mm+basalt wool (bulk density 50kg)+-0.1mm | |
| Front and rear wall panels | 65mm composite board 0.23mm+basalt wool (bulk density 50kg)+-0.1mm | |
| floor | Waterproof fiber cement board floor 18mm | |
| electrical system | Electrical wiring must be installed strictly in accordance with moisture-proof standards, and all electrical products must comply with CE certification. Connect circuits according to circuit engineering specifications. Indoor: incoming 4° GB standard soft copper wire, 1 20A circuit breaker, socket incoming 2.5°, 1 five hole single socket, 1 air conditioning socket, and 1 long LED light. | |
| Ordinary anti-theft door | High quality anti-theft door (warm white) size: 970mm * 1970mm | |
| window | 930 * 930 plastic steel anti-theft integrated window, glass thickness 4mm (warm white) | |
| quality assurance | The whole box meets the A-level fire protection standard as a whole | |
